Texas Instruments
TPD2E001DRST-NM
Dual 1.5-pF, 5.5-V, ±8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0 6-SON -40 to 85
Capacitance1.5pF
Quick Jump:
Technical Specifications
Texas Instruments TPD2E001DRST-NM technical specifications.
General
| Capacitance | 1.5pF |
| Clamping Voltage | 105.5V |
| Depth | 3mm |
| Direction | Unidirectional |
| Lead Free | Lead Free |
| Leakage Current | 1nA |
| Length | 3mm |
| Min Breakdown Voltage | 11V |
| Number of Bidirectional Channels | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD2E001DRST-NM Datasheet
Download the complete datasheet for Texas Instruments TPD2E001DRST-NM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

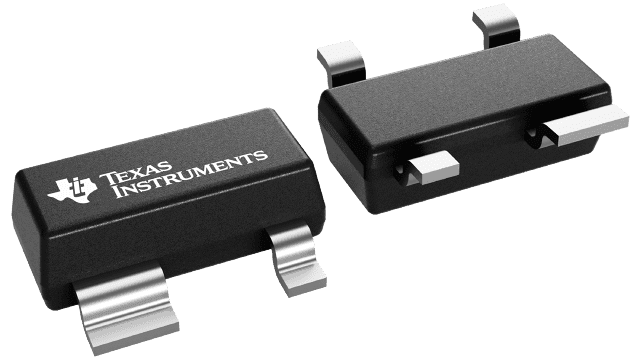

Product Images
