Two-channel EMI/RFI filter featuring a low-pass RC circuit with >50dB attenuation. This board mount component offers ESD protection and operates within a voltage range of -5V to 5V, with a minimum breakdown voltage of 14V. Constructed with 15 Ohm resistance and 30pF capacitance, its flat style SMD package measures 0.91mm x 1.31mm x 0.63mm (LxWxH). Operating temperature range is -40°C to 85°C.
Capacitance30pF
Resistance15R
Quick Jump:
Technical Specifications
Texas Instruments TPD2F702YFKR technical specifications.
General
| Attenuation Value | 50dB |
| Capacitance | 30pF |
| Circuit Type | Filter |
| Depth | 0.94mm |
| ESD Protection | Yes |
| Height | 0.63mm |
| Lead Free | Contains Lead |
| Length | 0.91mm |
| Min Breakdown Voltage | 14V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | -5V |
| Number of Channels | 2 |
| Number of Elements | 5 |
| Package Quantity | 3000 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 15R |
| RoHS Compliant | Yes |
| Series | TPD |
| Termination | Flat |
| Width | 1.31mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD2F702YFKR Datasheet
Download the complete datasheet for Texas Instruments TPD2F702YFKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

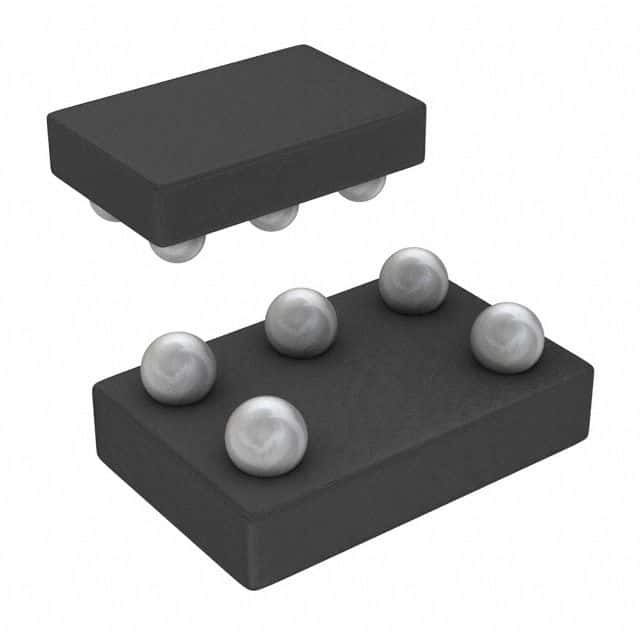

Product Images
