Low-capacitance 4-channel transient voltage suppressor (TVS) array designed for high-speed data interfaces like LVDS, USB, and Ethernet. Features a low 1.5pF capacitance per channel and a 5.5V working voltage, offering robust ESD protection up to +/-15kV. With a 1nA leakage current and 100W peak pulse power, this unidirectional device ensures reliable operation across a -40°C to 85°C temperature range. Packaged in a compact 6-USON (1.6mm x 1.6mm x 1.6mm) for surface-mount applications.
Capacitance1.5pF
Voltage Rating5.5V
Quick Jump:
Technical Specifications
Texas Instruments TPD4E001DPKT technical specifications.
General
| Capacitance | 1.5pF |
| Clamping Voltage | 105.5V |
| Depth | 1.6mm |
| Direction | Unidirectional |
| Interface | LVDS, USB, Ethernet |
| Lead Free | Lead Free |
| Leakage Current | 1nA |
| Length | 1.6mm |
| Min Breakdown Voltage | 11V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100W |
| Number of Bidirectional Channels | 4 |
| Number of Channels | 4 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Power | 100W |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD4E001DPKT Datasheet
Download the complete datasheet for Texas Instruments TPD4E001DPKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

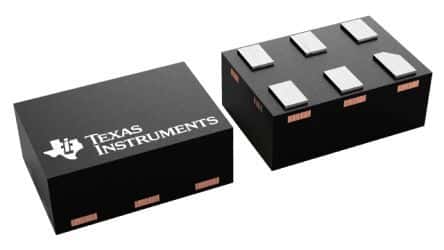

Product Images
