Texas Instruments
TPD4E004DRYRG4
4-channel ESD protection array for high-speed data interfaces 6-SON -40 to 85
PackageSON
Capacitance2pF
Quick Jump:
Technical Specifications
Texas Instruments TPD4E004DRYRG4 technical specifications.
General
Capacitance
2pF
Package/Case
SON
Depth
1mm
Direction
Unidirectional
Interface
USB, Ethernet
Lead Free
Lead Free
Leakage Current
1nA
Length
1.45mm
Min Breakdown Voltage
6V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of Channels
4
Number of Unidirectional Channels
4
Operating Supply Voltage
5.5V
Package Quantity
5000
Packaging
Tape and Reel
Power Line Protection
Yes
Radiation Hardening
No
Reverse Standoff Voltage
5.5V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPD4E004DRYRG4 Datasheet
Download the complete datasheet for Texas Instruments TPD4E004DRYRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

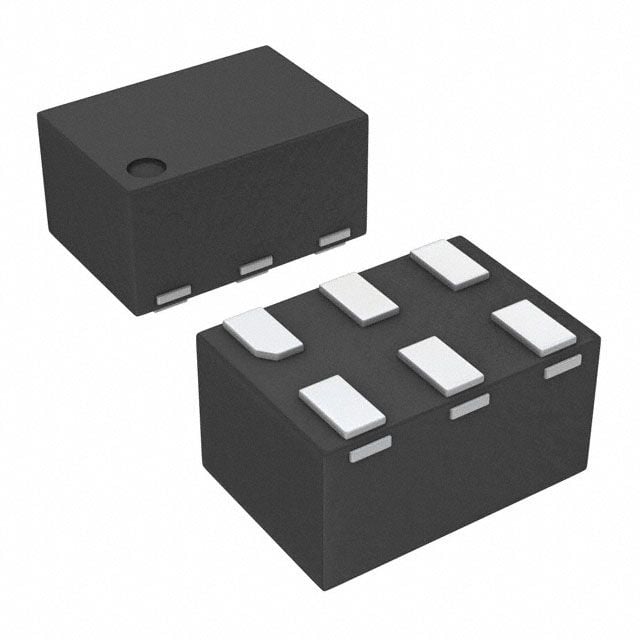

Product Images
