Quad-channel unidirectional transient voltage suppressor (TVS) for high-speed interfaces like LVDS, USB, and Ethernet. Features 1pF capacitance per channel, 6.5V minimum breakdown voltage, and 11V clamping voltage. Offers 45W peak pulse power handling with a 3A peak pulse current rating. Operates over a wide temperature range of -40°C to 125°C. Surface mountable in a compact SC package, this RoHS compliant device provides robust ESD protection.
PackageSC
Capacitance1pF
Voltage Rating5.5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPD4E1U06DCKR technical specifications.
General
| Capacitance | 1pF |
| Package/Case | SC |
| Clamping Voltage | 11V |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 1mm |
| Interface | LVDS, USB, Ethernet |
| Lead Free | Lead Free |
| Length | 2.15mm |
| Min Breakdown Voltage | 6.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 45W |
| Max Reverse Leakage Current | 10nA |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 5.5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 3A |
| Peak Pulse Power | 45W |
| Power Line Protection | Yes |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 1.4mm |
| Working Voltage | 5.5V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD4E1U06DCKR Datasheet
Download the complete datasheet for Texas Instruments TPD4E1U06DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

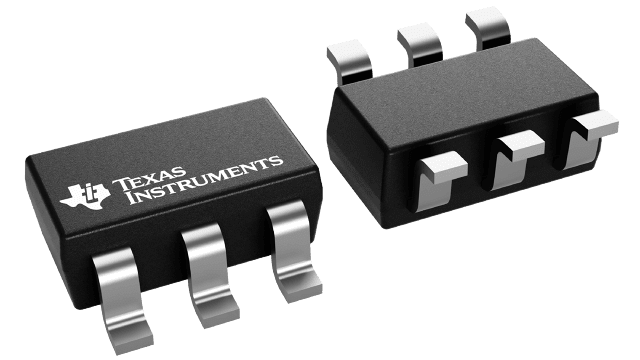

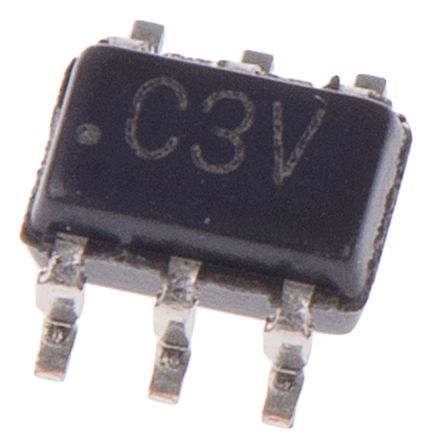

Product Images
