8-channel unidirectional ESD suppressor diode array featuring 6V minimum breakdown voltage and 10V clamping voltage. This Zener diode array offers a low 12pF capacitance per channel and 100nA leakage current. Designed for surface-mount termination, it operates within a -40°C to 85°C temperature range and handles a peak pulse current of 2A with 55W peak pulse power. The component is RoHS compliant and lead-free.
Capacitance12pF
Voltage Rating2.5V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Texas Instruments TPD8E003DQDR technical specifications.
General
| Capacitance | 12pF |
| Clamping Voltage | 10V |
| Depth | 1.35mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Leakage Current | 100nA |
| Length | 1.7mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 55W |
| Number of Channels | 8 |
| Number of Unidirectional Channels | 8 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 2A |
| Peak Pulse Power | 55W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 2.5V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPD8E003DQDR Datasheet
Download the complete datasheet for Texas Instruments TPD8E003DQDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

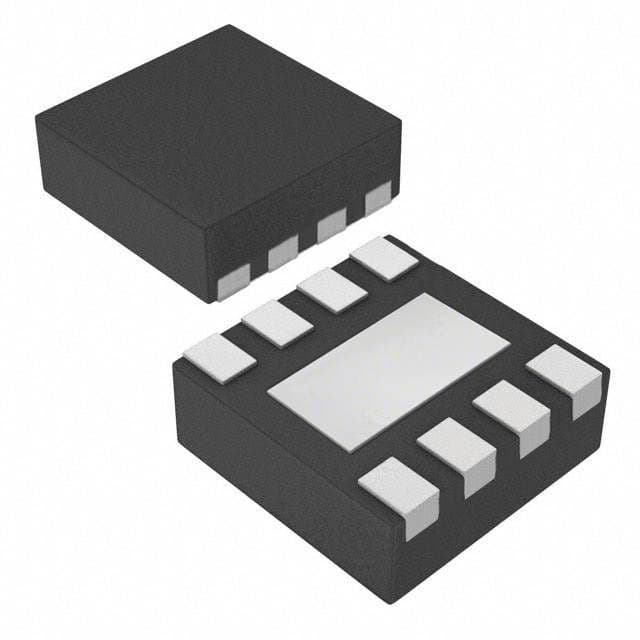

Product Images
