High-side load switch for power management, featuring a 5.5V maximum input voltage and 2.7V minimum input voltage. Delivers up to 1.5A output current with a low 35mΩ on-resistance. Includes over-temperature fault protection and a simple on/off interface. Operates across a wide temperature range of -40°C to 85°C. Surface mountable in an HTSSOP package, this RoHS compliant component offers a quiescent current of 73µA.
PackageHTSSOP
Current73uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS2013APWPR technical specifications.
General
Package/Case
HTSSOP
Fault Protection
Over Temperature
Interface
On/Off
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Supply Current
73uA
Mount
Surface Mount
Number of Channels
1
Number of Inputs
1
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
High Side
Output Current
1.5A
Package Quantity
2000
Packaging
Tape and Reel
Quiescent Current
73uA
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
73uA
Weight
0.002046oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2013APWPR Datasheet
Download the complete datasheet for Texas Instruments TPS2013APWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

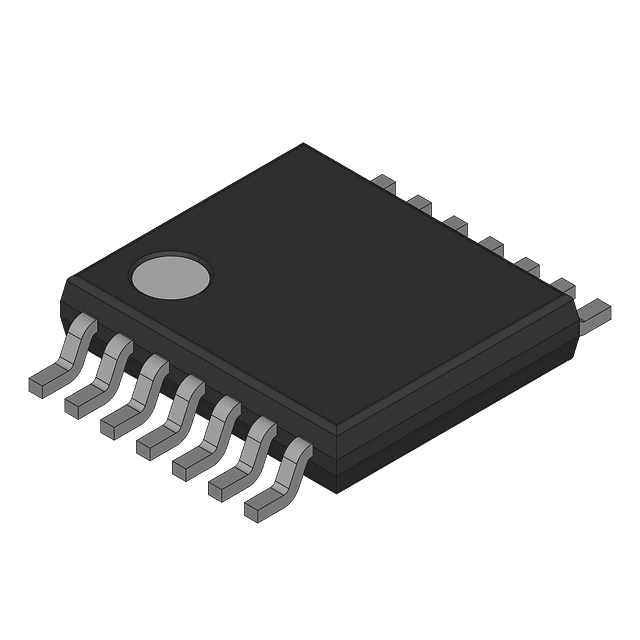

Product Images
