Dual-input, single-output power multiplexer IC featuring automatic switching. Supports input voltages from 1.5V to 5.5V with a maximum output current of 1.25A. Boasts a low 84mΩ drain-to-source resistance and operates efficiently with a nominal supply current of 55µA. Packaged in an 8-pin TSSOP, this RoHS compliant component offers 1ms turn-on and 5ms turn-off delay times.
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS2111APWR technical specifications.
General
| Package/Case | TSSOP |
| Current - Output 2 | 1.25A |
| Drain to Source Resistance | 84mR |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.25A |
| Max Power Dissipation | 387mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.5V |
| Nominal Supply Current | 55uA |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Supply Current | 55uA |
| Operating Supply Voltage | 5.5V |
| Output Current | 1.25A |
| Output Voltage | 6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1mm |
| Turn-Off Delay Time | 5ms |
| Turn-On Delay Time | 1ms |
| Weight | 0.001376oz |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS2111APWR Datasheet
Download the complete datasheet for Texas Instruments TPS2111APWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

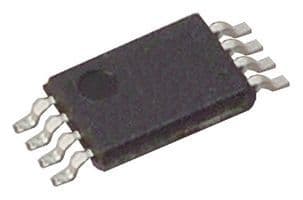

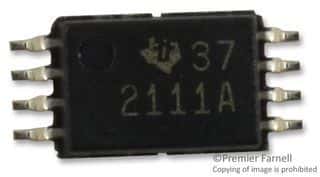

Product Images
