Adjustable LDO voltage regulator with a 3.3V fixed output option, featuring dual current limiting for high-power USB peripherals. Operates from a 2.7V to 5.5V input voltage range with a maximum output current of 250mA. Offers a low dropout voltage of 180mV and a minimum output voltage of 900mV. Packaged in a 14-pin HTSSOP for surface mounting, with an operating temperature range of -40°C to 85°C. This RoHS compliant component has a typical supply current of 85µA.
PackageHTSSOP
Current85uA
MountingSurface Mount
Power2.27W
Quick Jump:
Technical Specifications
Texas Instruments TPS2140IPWP technical specifications.
General
| Package/Case | HTSSOP |
| Dropout Voltage | 180mV |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 900mV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Current | 85uA |
| Output Current | 250mA |
| Output Type | Adjustable |
| Output Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Power Dissipation | 2.27W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TPS2140 |
| Supply Current | 85uA |
| Termination | SMD/SMT |
| Weight | 0.002046oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS2140IPWP Datasheet
Download the complete datasheet for Texas Instruments TPS2140IPWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

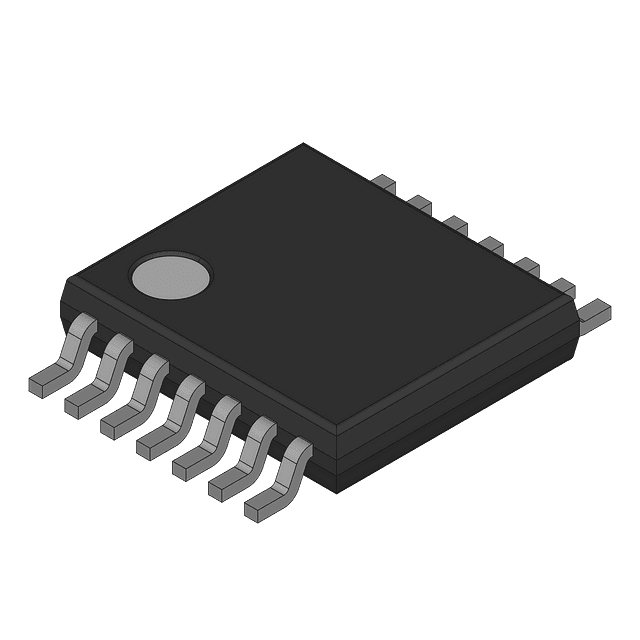

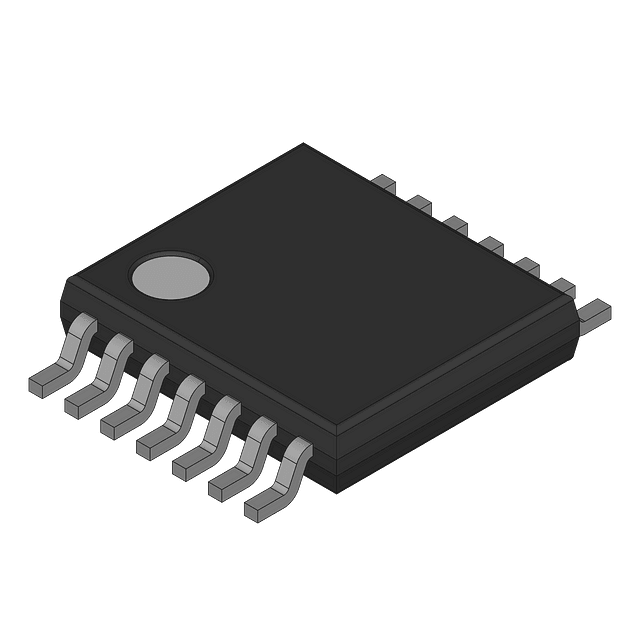

Product Images
