Texas Instruments
TPS22904YFPR
3.6-V, 0.5-A, 66-mΩ load switch with output discharge 4-DSBGA -40 to 85
Current1uA
MountingSurface Mount
Power480mW
Quick Jump:
Technical Specifications
Texas Instruments TPS22904YFPR technical specifications.
General
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 1.1V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 480mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.6V |
| Output Configuration | High Side |
| Output Current | 500mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 480mW |
| Quiescent Current | 180nA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 1uA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22904YFPR Datasheet
Download the complete datasheet for Texas Instruments TPS22904YFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

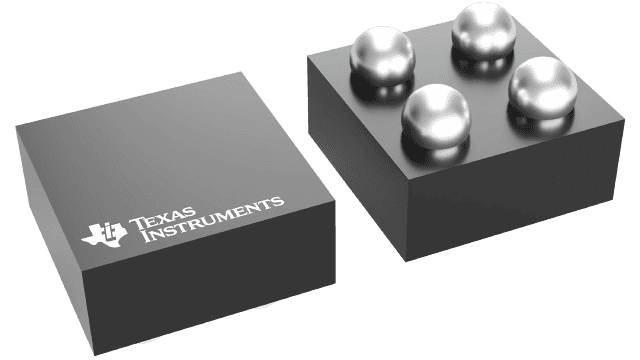

Product Images
