Texas Instruments
TPS22915CYFPR
5.5-V, 2-A, 39-mΩ load switch with output discharge 4-DSBGA -40 to 105
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22915CYFPR technical specifications.
General
Height
500um
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Supply Voltage
5.5V
Min Supply Voltage
1.05V
Mount
Surface Mount
Nominal Supply Current
7.7uA
Number of Channels
1
Number of Outputs
1
On-State Resistance
37mR
Output Configuration
High Side
Output Current
2A
Packaging
Cut Tape
RoHS Compliant
Yes
Thickness
0m
Turn-Off Delay Time
2us
Turn-On Delay Time
1.3ms
Width
0m
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS22915CYFPR Datasheet
Download the complete datasheet for Texas Instruments TPS22915CYFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

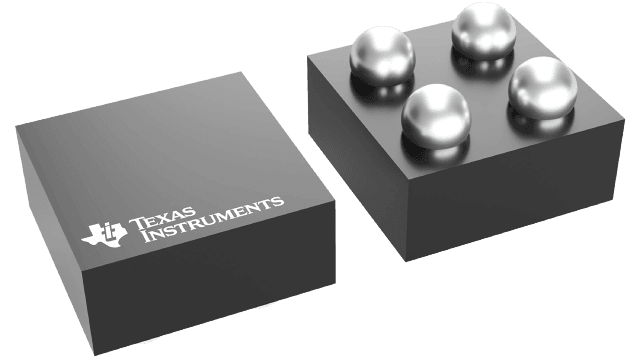

Product Images
