Load switch IC featuring a 3.6V maximum input voltage and 2A maximum output current. Offers a low 14mΩ on-state resistance and 200nA quiescent current. Operates from 900mV to 3.6V supply voltage with a 3.6V maximum output voltage. Includes output discharge functionality and an On/Off interface. Packaged in a 6-DSBGA with dimensions of 1mm x 1.4mm x 500µm.
Current120nA
Resistance170mR
Power645mW
Quick Jump:
Technical Specifications
Texas Instruments TPS22922BYFPR technical specifications.
General
Height
500um
Interface
On/Off
Lead Free
Lead Free
Length
1mm
Max Input Voltage
3.6V
Min Input Voltage
900mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
3.6V
Max Power Dissipation
645mW
Max Supply Current
200nA
Max Supply Voltage
3.6V
Min Supply Voltage
900mV
Number of Channels
1
Number of Outputs
1
On-State Resistance
14mR
Output Configuration
High Side
Output Current
2A
Output Voltage
3.6V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
645mW
Quiescent Current
200nA
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
170mR
RoHS Compliant
Yes
Supply Current
120nA
Termination
SMD/SMT
Thickness
500um
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS22922BYFPR Datasheet
Download the complete datasheet for Texas Instruments TPS22922BYFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

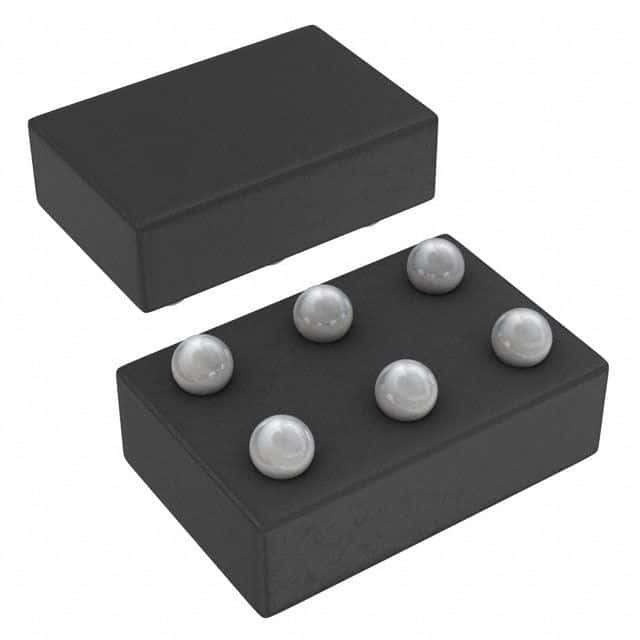

Product Images
