Texas Instruments
TPS22924BYZT
3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 100-µs at 3.6-V 6-DSBGA -40 to 85
PackageDIE
MountingSurface Mount
Power810.63mW
Quick Jump:
Technical Specifications
Texas Instruments TPS22924BYZT technical specifications.
General
| Package/Case | DIE |
| Lead Free | Lead Free |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 750mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 810.63mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.6V |
| Output Current | 2A |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Dissipation | 810.63mW |
| Quiescent Current | 75uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22924BYZT Datasheet
Download the complete datasheet for Texas Instruments TPS22924BYZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

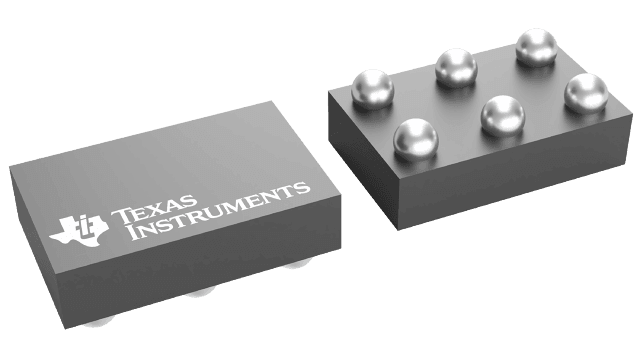

Product Images
