General purpose load switch featuring a 3.6V operating supply voltage and a 2A maximum output current. This single-channel device offers an 18.3mΩ on-resistance and a 6200µs output discharge rise time at 3.6V. With a low quiescent current of 75µA and a maximum supply current of 350µA, it is designed for efficient power management. The component supports a surface mount configuration with a compact 1.5mm x 0.9mm x 0.5mm package. Operating across a temperature range of -40°C to 85°C, it is lead-free and RoHS compliant.
Resistance18.3mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22924DYZPR technical specifications.
General
| Height | 500um |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 1.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 810.63mW |
| Max Supply Current | 350uA |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 3.6V |
| Output Configuration | High Side |
| Output Current | 2A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 75uA |
| Radiation Hardening | No |
| Resistance | 18.3mR |
| RoHS Compliant | Yes |
| Thickness | 272um |
| Type | General Purpose |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22924DYZPR Datasheet
Download the complete datasheet for Texas Instruments TPS22924DYZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

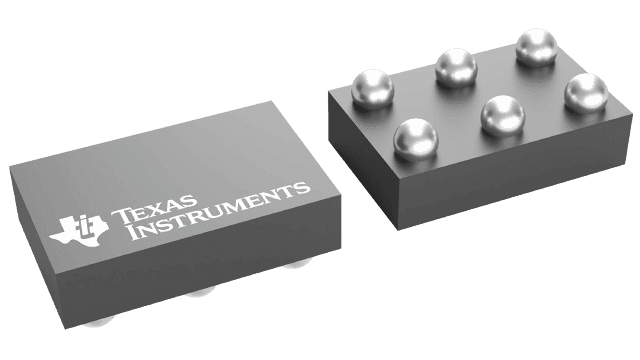

Product Images
