General purpose load switch IC featuring a 4.5V maximum input voltage and a 1.62V minimum input voltage. Offers a 100mA minimum current limit and 400mΩ on-state resistance. This 2-channel device operates within a -40°C to 85°C temperature range and has a quiescent current of 85µA. Packaged in an 8-SON SMD/SMT termination, it is lead-free and RoHS compliant.
PackageSON
Current85uA
Power1.52W
Quick Jump:
Technical Specifications
Texas Instruments TPS22949ADRGR technical specifications.
General
| Package/Case | SON |
| Height | 0.73mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Min Current Limit | 100mA |
| Max Input Voltage | 4.5V |
| Min Input Voltage | 1.62V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.525W |
| Max Supply Current | 85uA |
| Number of Channels | 2 |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| On-State Resistance | 400mR |
| Operating Supply Voltage | 4.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.52W |
| Quiescent Current | 85uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 85uA |
| Termination | SMD/SMT |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22949ADRGR Datasheet
Download the complete datasheet for Texas Instruments TPS22949ADRGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

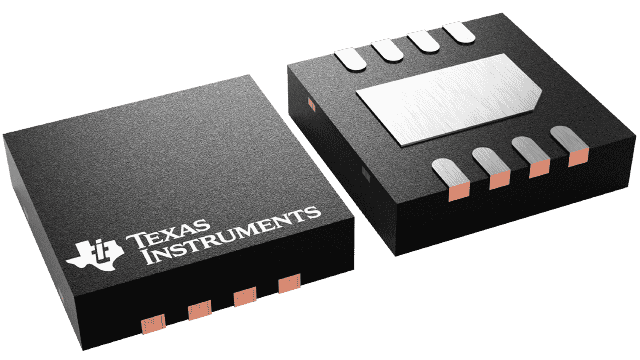

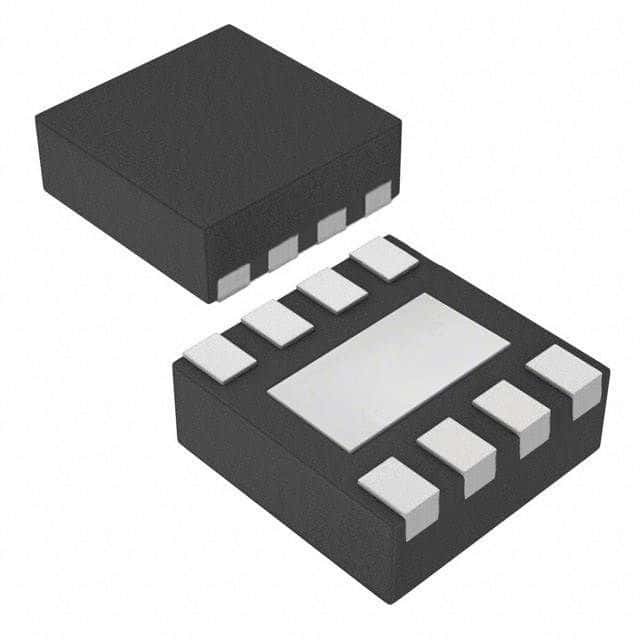

Product Images
