Single-channel, 4.5V load switch with integrated current limit and LDO functionality. Features a minimum current limit of 100mA and a maximum output current of 100mA. Operates from 1.62V to 4.5V input voltage, with a maximum power dissipation of 784mW. Includes over-temperature fault protection and a low quiescent current of 85uA. Packaged in an 8-DSBGA with a height of 0.3mm, supplied on tape and reel.
Current85uA
Quick Jump:
Technical Specifications
Texas Instruments TPS22949YZPR technical specifications.
General
Fault Protection
Over Temperature
Height
0.3mm
Interface
On/Off
Lead Free
Lead Free
Min Current Limit
100mA
Max Input Voltage
4.5V
Min Input Voltage
1.62V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Power Dissipation
784mW
Max Supply Current
110uA
Number of Channels
1
Number of Inputs
1
Number of Outputs
2
Operating Supply Voltage
4.5V
Output Configuration
High Side
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
85uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
TPS22949
Supply Current
85uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS22949YZPR Datasheet
Download the complete datasheet for Texas Instruments TPS22949YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

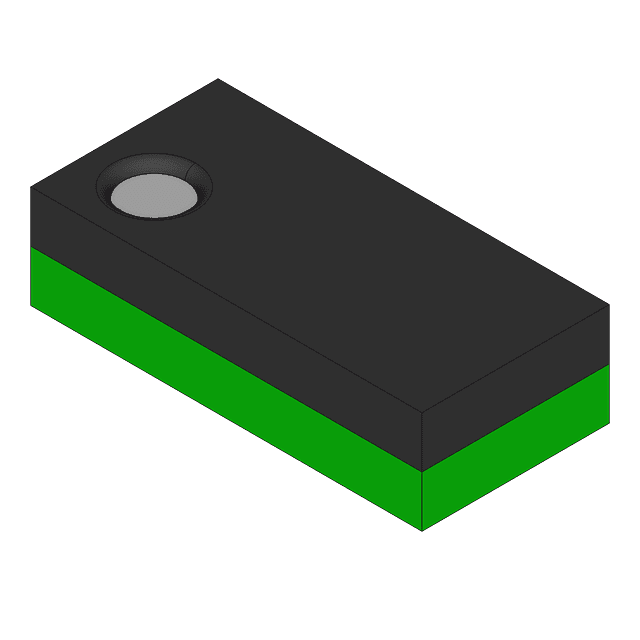

Product Images
