Texas Instruments
TPS22951YFPR
5.3-V, 0.3-A, 565-mΩ load switch with current limit and power good 6-DSBGA -40 to 85
Current100uA
Quick Jump:
Technical Specifications
Texas Instruments TPS22951YFPR technical specifications.
General
| Lead Free | Lead Free |
| Min Current Limit | 600mA |
| Max Input Voltage | 5.3V |
| Min Input Voltage | 2.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 810mW |
| Max Supply Current | 100uA |
| Number of Channels | 1 |
| Number of Inputs | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.3V |
| Output Current | 600mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 100uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 100uA |
| Type | General Purpose |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22951YFPR Datasheet
Download the complete datasheet for Texas Instruments TPS22951YFPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

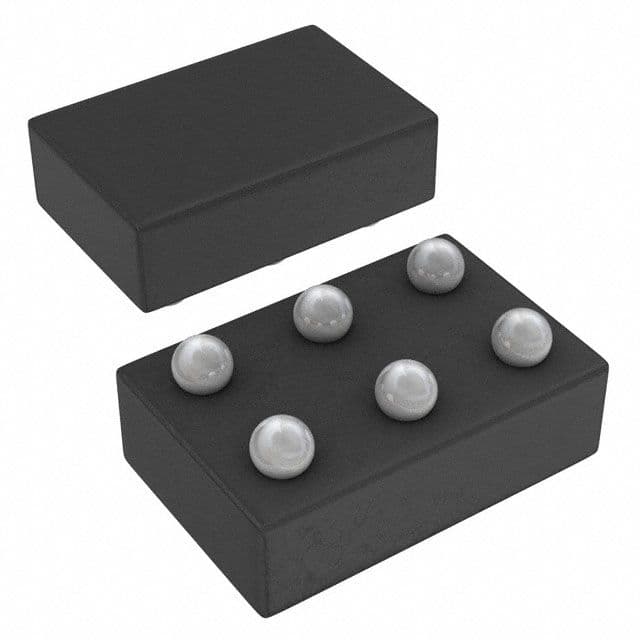

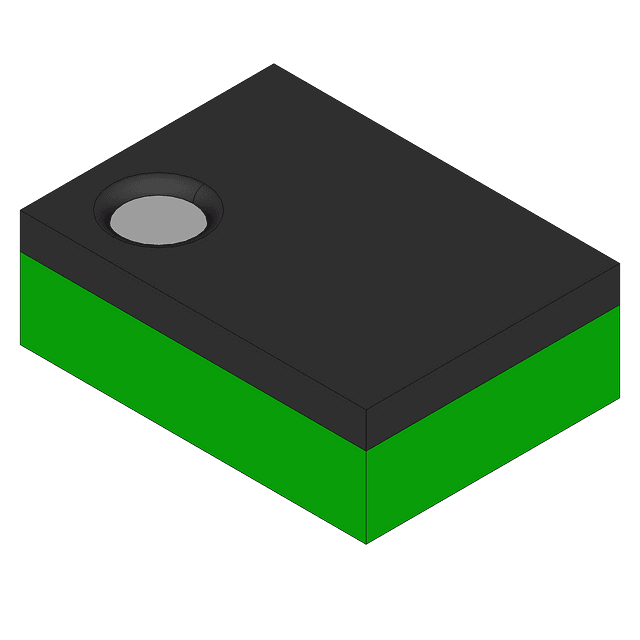

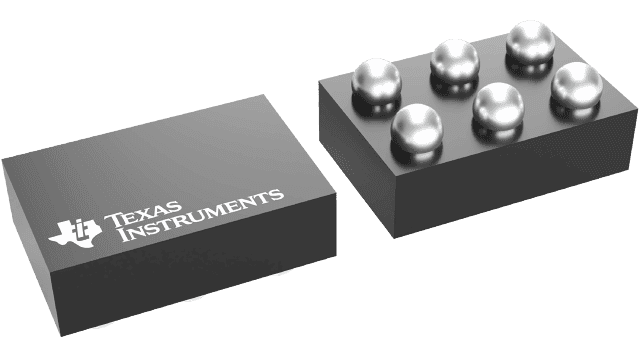

Product Images
