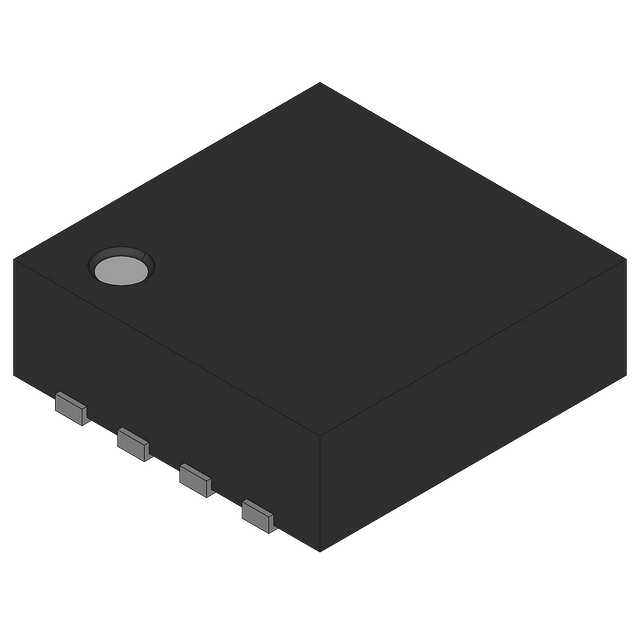

The TPS22960RSET is a dual high side power switch from Texas Instruments, operating between -40°C and 85°C. It features two high side outputs with a maximum current of 500mA and a maximum power dissipation of 862.1mW. The device is surface mount and available in a VQCCN-16 package, packaged on a tape and reel. It is lead free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS22960RSET datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 862.1mW |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Output Configuration | High Side |
| Output Current | 500mA |
| Packaging | Tape and Reel |
| Quiescent Current | 350nA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments TPS22960RSET to view detailed technical specifications.
