Single-channel power switch designed for efficient power management. Features a low 16mΩ on-state resistance and a maximum output current of 6A. Operates within a 2.5V to 5.5V supply voltage range, with a nominal input voltage of 5.5V. Offers a simple On/Off interface and a quiescent current of 50µA. Packaged in a compact 8-pin WSON EP surface-mount package, ideal for space-constrained applications.
Voltage5.5V
Current6A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22965DSGT technical specifications.
General
| Current | 6A |
| Height | 0.75mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Nominal Input Voltage | 5.5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 16mR |
| Output Configuration | High Side |
| Output Current | 6A |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Voltage | 5.5V |
| Weight | 0.000384oz |
| Width | 2.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22965DSGT Datasheet
Download the complete datasheet for Texas Instruments TPS22965DSGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

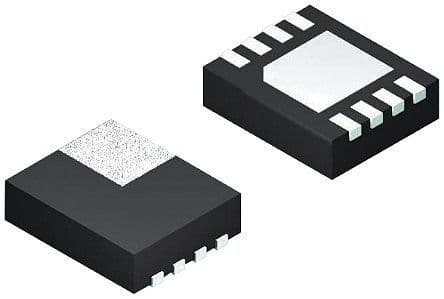

Product Images
