General purpose load switch, 5.5V maximum supply voltage, 4A maximum output current. Features 22mΩ on-resistance, adjustable rise time, and output discharge. Operates from -40°C to 85°C with a quiescent current of 50µA. Surface mountable in an 8-WSON package, 2mm x 2mm x 0.8mm.
Resistance35mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS22967DSGR technical specifications.
General
| Height | 800um |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 800mV |
| Mount | Surface Mount |
| Nominal Supply Current | 50uA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Current | 4A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Resistance | 35mR |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Type | General Purpose |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS22967DSGR Datasheet
Download the complete datasheet for Texas Instruments TPS22967DSGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

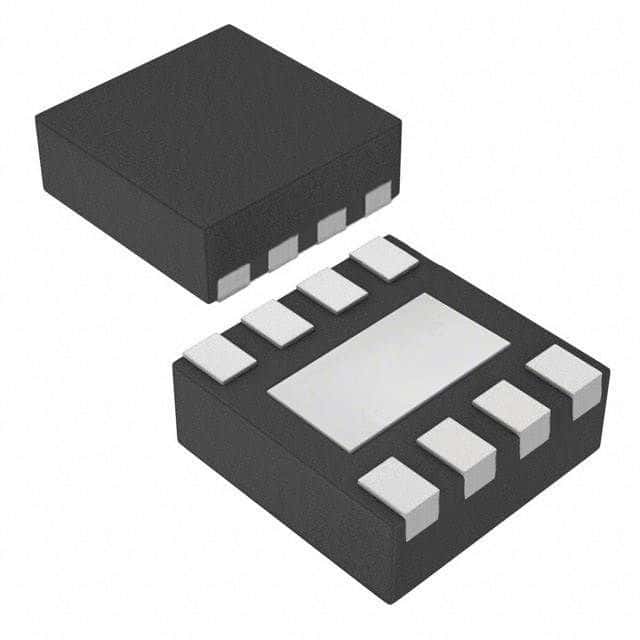

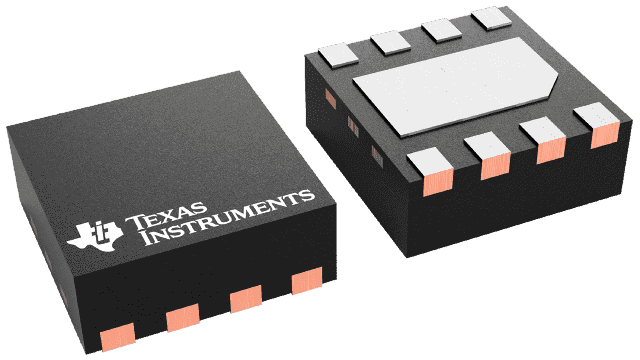

Product Images
