Dual-channel hot swap controller for robust power management. Features thermal limit and undervoltage lockout (UVLO) for system protection. Operates with input voltages from 3V to 20V, supporting up to 20V output. Delivers a maximum output current of 5A per channel. Packaged in a 16-pin VQFN with SMD/SMT termination, suitable for tape and reel assembly. RoHS compliant and lead-free.
PackageQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS2420RSAT technical specifications.
General
Package/Case
QFN
Depth
4mm
Features
Thermal Limit, UVLO
Height
4.1mm
Lead Free
Lead Free
Length
4mm
Max Input Voltage
20V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
20V
Max Supply Voltage
20V
Min Supply Voltage
3V
Number of Channels
1
Operating Supply Current
5mA
Output Voltage
20V
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Thickness
900um
Weight
0.001623oz
Width
4.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2420RSAT Datasheet
Download the complete datasheet for Texas Instruments TPS2420RSAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

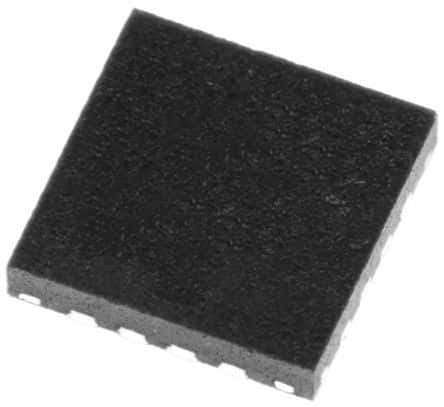

Product Images
