Texas Instruments
TPS2505B1RGWR
Integrated dual USB power switch with boost converter and LDO 20-VQFN -40 to 85
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS2505B1RGWR technical specifications.
General
| Bandwidth | 1MHz |
| Package/Case | VQFN |
| Lead Free | Lead Free |
| Max Input Voltage | 5.25V |
| Min Input Voltage | 1.8V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 1.8V |
| Number of Outputs | 2 |
| Number of Switches | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | TPS2505 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS2505B1RGWR Datasheet
Download the complete datasheet for Texas Instruments TPS2505B1RGWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

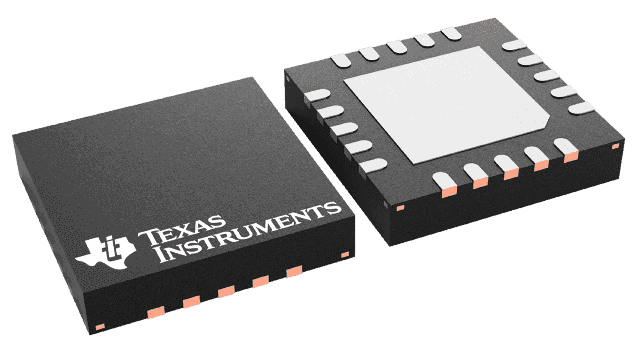

Product Images
