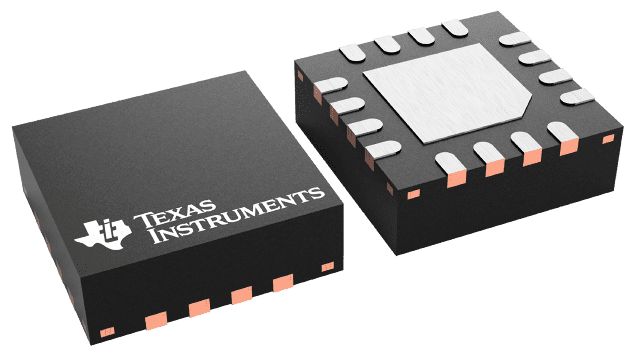

The TPS2543RTER is a high-side switch from Texas Instruments with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It features a maximum output current of 3A and a maximum supply voltage of 5.5V. The device is RoHS compliant and packaged in a tape and reel format with 3000 units per package. The TPS2543RTER is suitable for surface mount applications and has a supply current of 205uA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS2543RTER datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 2.6GHz |
| Fault Protection | Over Temperature |
| Height | 0.75mm |
| Interface | On/Off |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| Output Configuration | High Side |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 205uA |
| RoHS | Compliant |
