Texas Instruments
TPS2556QDRBRQ1
Automitve 0.5A - 5A, adjustable ILIMIT, 2.5-6.5V, active-low enable power switch, 22 mOhm 8-SON -40 to 125
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS2556QDRBRQ1 technical specifications.
General
| Package/Case | SON |
| Fault Protection | Over Temperature |
| Interface | On/Off |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Switches | 1 |
| Output Configuration | High Side |
| Output Current | 5A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Weight | 0.000847oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS2556QDRBRQ1 Datasheet
Download the complete datasheet for Texas Instruments TPS2556QDRBRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

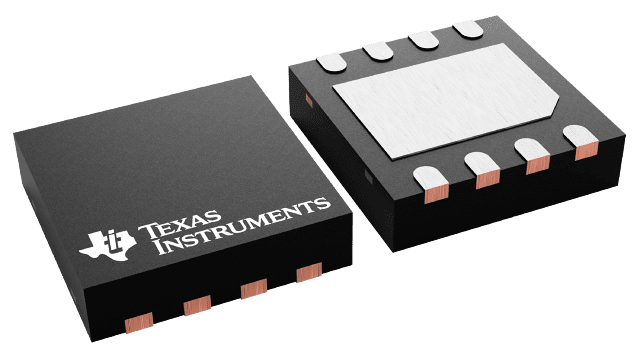

Product Images
