Texas Instruments
TPS2556QDRBTQ1
Automitve 0.5A - 5A, adjustable ILIMIT, 2.5-6.5V, active-low enable power switch, 22 mOhm 8-SON -40 to 125
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS2556QDRBTQ1 technical specifications.
General
Package/Case
SON
Fault Protection
Over Temperature
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Supply Voltage
6.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Outputs
1
Number of Switches
1
Output Configuration
High Side
Output Current
5A
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Weight
0.000847oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2556QDRBTQ1 Datasheet
Download the complete datasheet for Texas Instruments TPS2556QDRBTQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

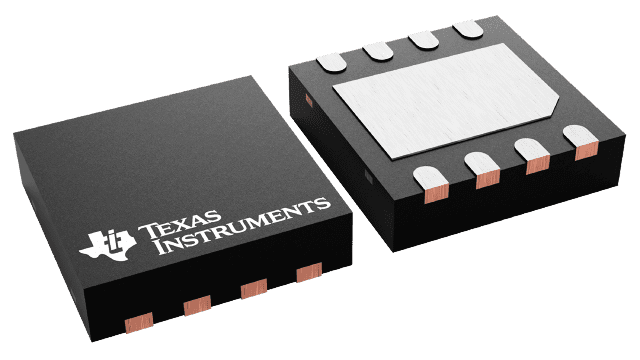

Product Images
