Texas Instruments
TPS2559DRCR
1.2-4.7A, adjustable ILIMIT 2.5-6.5V, active-high enable, 13 mOhm power switch 10-VSON -40 to 125
PackageVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS2559DRCR technical specifications.
General
Package/Case
VSON
Fault Protection
Over Temperature
Interface
On/Off
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5.5A
Mount
Surface Mount
Number of Outputs
1
Number of Switches
1
Output Configuration
High Side
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2559DRCR Datasheet
Download the complete datasheet for Texas Instruments TPS2559DRCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

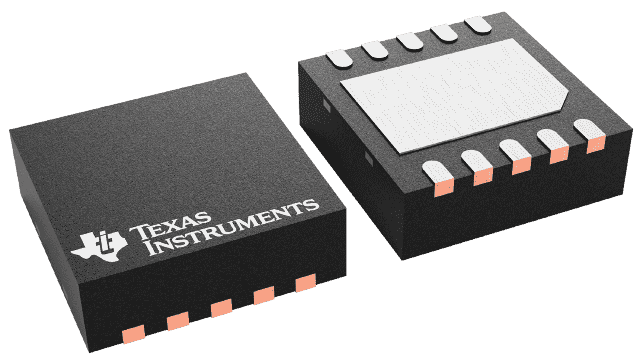

Product Images
