Texas Instruments
TPS2834PWP
2.4-A, 28-V half bridge gate driver with TTL inputs and enable for non-inverting synchronous buck 14-HTSSOP -40 to 125
PackageHTSSOP EP
MountingSurface Mount
Power2.668W
Quick Jump:
Technical Specifications
Texas Instruments TPS2834PWP technical specifications.
General
Package/Case
HTSSOP EP
Fall Time
50ns
Lead Free
Lead Free
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3.5A
Max Power Dissipation
2.668W
Max Supply Voltage
15V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
2
Number of Outputs
2
Operating Supply Voltage
6.5V
Package Quantity
90
Packaging
Rail/Tube
Power Dissipation
2.668W
Propagation Delay
95ns
Radiation Hardening
No
RoHS Compliant
Yes
Turn-On Delay Time
95ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS2834PWP Datasheet
Download the complete datasheet for Texas Instruments TPS2834PWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

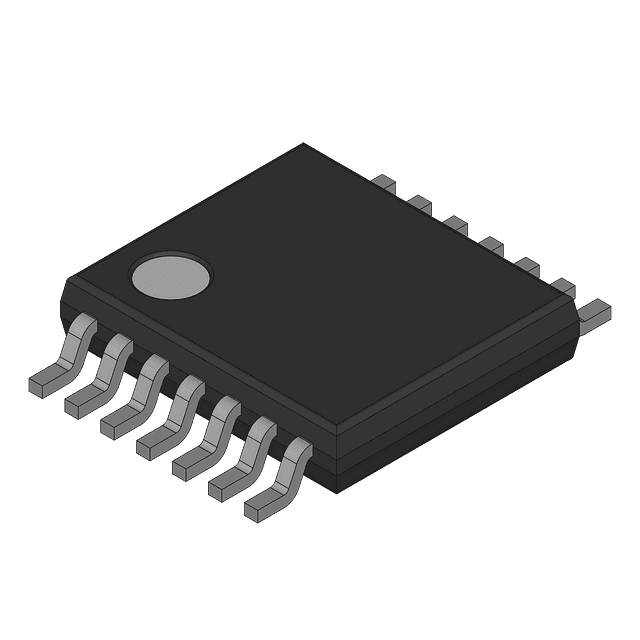

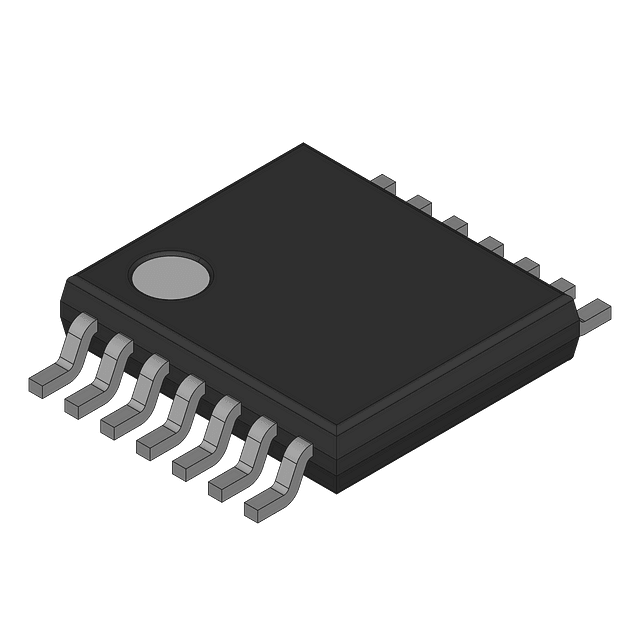

Product Images
