Dual-processor voltage supervisor with power-fail and watchdog timer. Features two monitored voltage inputs, a 2.93V threshold, and active-low reset with a 70ms timeout. Operates from 2.7V to 6V with a low 15µA quiescent current. Packaged in an 8-VSSOP, this lead-free component offers a maximum operating temperature of 85°C and a power dissipation of 424mW.
PackageVSSOP
Current40uA
Power424mW
Quick Jump:
Technical Specifications
Texas Instruments TPS3306-18DGK technical specifications.
General
Package/Case
VSSOP
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
424mW
Max Supply Current
40uA
Max Supply Voltage
6V
Min Supply Voltage
2.7V
Number of Elements
2
Number of Voltages Monitored
2
Operating Supply Current
15uA
Package Quantity
80
Packaging
Rail/Tube
Power Dissipation
424mW
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Timeout
70ms
RoHS Compliant
Yes
Series
TPS3306-18
Supply Current
40uA
Threshold Voltage
2.93V
Undervoltage Threshold
2.93V
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS3306-18DGK Datasheet
Download the complete datasheet for Texas Instruments TPS3306-18DGK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

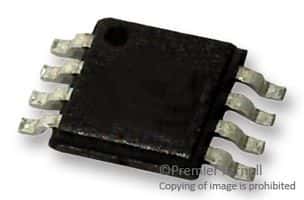

Product Images
