High-voltage window voltage detector for overvoltage and undervoltage monitoring. Features a 1.8V to 18V supply voltage range and 5.5mV hysteresis. Monitors two voltages with 404mV overvoltage and 396mV undervoltage thresholds. Operates from -40°C to 125°C with a low 5.5µA supply current. Packaged in a 1mm high SOT-23-6 surface mount component.
PackageSOT-23-6
Current5.5uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS3700DDCT technical specifications.
General
Package/Case
SOT-23-6
Height
1mm
Hysteresis
5.5mV
Lead Free
Lead Free
Length
3.05mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
1
Number of Elements
2
Number of Voltages Monitored
2
Operating Supply Current
5.5uA
Overvoltage Threshold
404mV
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
29us
Quiescent Current
11uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS3700
Supply Current
5.5uA
Undervoltage Threshold
396mV
Watchdog Timer
No
Width
1.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS3700DDCT Datasheet
Download the complete datasheet for Texas Instruments TPS3700DDCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

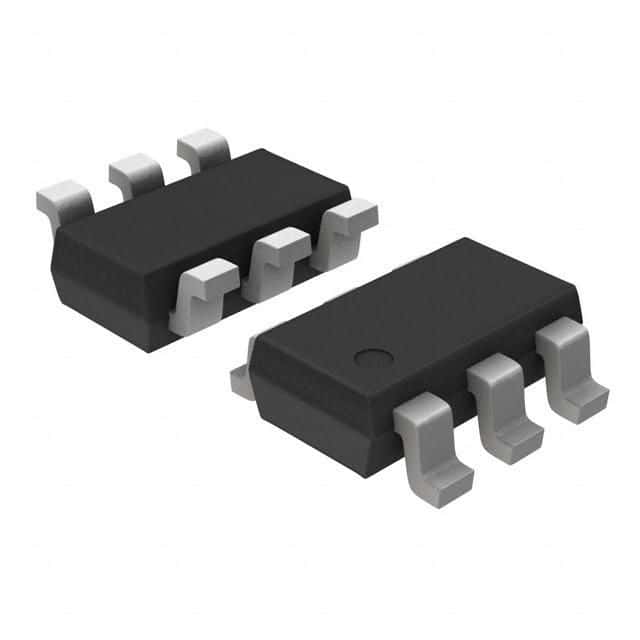

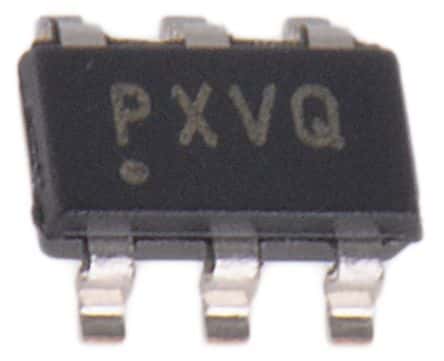

Product Images
