Low-power voltage detector IC featuring a 1.226V threshold voltage with 1.5% accuracy. This SMD/SMT component operates from 1.3V to 6V supply voltage, consuming a maximum of 4µA supply current. It provides an active low reset signal with a 5.5µs delay and 5µs timeout. Housed in a compact SC package (2mm x 1.25mm x 0.9mm), it is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageSC
Current2uA
Power321mW
Quick Jump:
Technical Specifications
Texas Instruments TPS3803-01DCKR technical specifications.
General
Accuracy
1.5%
Package/Case
SC
Height
0.9mm
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
5mA
Max Power Dissipation
321mW
Max Supply Current
4uA
Max Supply Voltage
6V
Min Supply Voltage
1.3V
Number of Monitored Inputs
1
Number of Voltages Monitored
1
Operating Supply Current
3uA
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
321mW
Quiescent Current
3uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
Reset Delay Time
5.5us
Reset Timeout
5us
RoHS Compliant
Yes
Supply Current
2uA
Termination
SMD/SMT
Threshold Voltage
1.226V
Watchdog Timer
No
Weight
8.8E-05oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS3803-01DCKR Datasheet
Download the complete datasheet for Texas Instruments TPS3803-01DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

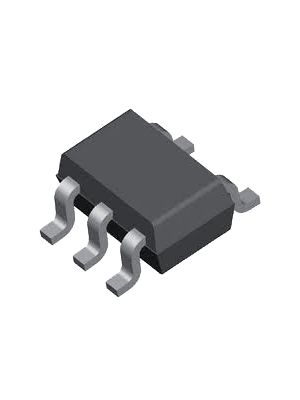

Product Images
