This voltage supervisor IC features a programmable window watchdog timer, monitoring a single voltage. It operates within a 2V to 6V supply voltage range, with a typical operating supply voltage of 3.3V. The reset threshold is set between 2.87V and 3V, with an active-low reset output. The component boasts a low quiescent current of 9µA and a maximum supply current of 25µA. Packaged in a 6-pin SOT-23 SMD/SMT format, it offers a maximum power dissipation of 437mW and operates from -40°C to 85°C.
PackageSOT-23
Current25uA
Power437mW
Quick Jump:
Technical Specifications
Texas Instruments TPS3813K33DBVT technical specifications.
General
| Package/Case | SOT-23 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5mA |
| Max Power Dissipation | 437mW |
| Max Reset Threshold Voltage | 3V |
| Min Reset Threshold Voltage | 2.87V |
| Max Supply Current | 25uA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Number of Elements | 1 |
| Number of Voltages Monitored | 1 |
| Operating Supply Current | 9uA |
| Operating Supply Voltage | 3.3V |
| Overvoltage Threshold | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 437mW |
| Quiescent Current | 9uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reset | Active Low |
| Reset Timeout | 20ms |
| RoHS Compliant | Yes |
| Supply Current | 25uA |
| Termination | SMD/SMT |
| Threshold Voltage | 2.93V |
| Undervoltage Threshold | 2.93V |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS3813K33DBVT Datasheet
Download the complete datasheet for Texas Instruments TPS3813K33DBVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

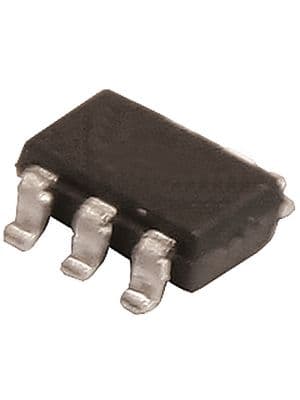

Product Images
