This multi-voltage supervisor and power supply monitor IC features 4 active low, open-drain outputs and a watchdog timer. It offers a precise 0.25% accuracy for its reset threshold voltage, adjustable from 396mV to 404mV, with an overvoltage threshold of 400mV. Operating across a supply voltage range of 1.8V to 6.5V, this surface mount component draws a low 13µA quiescent current. Housed in a 20-pin QFN package with dimensions of 4.15mm x 4.15mm x 0.95mm, it supports a maximum operating temperature of 125°C and is RoHS compliant.
PackageQFN
Current13uA
MountingSurface Mount
Power2.86W
Quick Jump:
Technical Specifications
Texas Instruments TPS386000RGPT technical specifications.
General
Accuracy
0.25%
Package/Case
QFN
Height
0.95mm
Lead Free
Lead Free
Length
4.15mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1mA
Max Power Dissipation
2.86W
Max Reset Threshold Voltage
404mV
Min Reset Threshold Voltage
396mV
Max Supply Voltage
6.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Voltages Monitored
4
Operating Supply Current
13uA
Overvoltage Threshold
400mV
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.86W
Quiescent Current
12uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Supply Current
13uA
Termination
SMD/SMT
Threshold Voltage
400mV
Type
Multi-Voltage Supervisor, Power Supply Monitor
Watchdog Timer
Yes
Width
4.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS386000RGPT Datasheet
Download the complete datasheet for Texas Instruments TPS386000RGPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

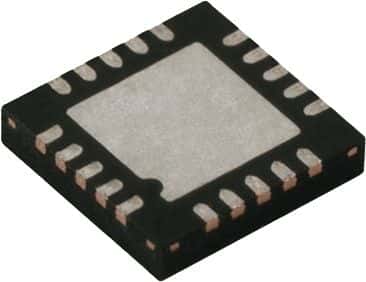

Product Images
