Quad-supply voltage supervisor with 0.25% accuracy, featuring a programmable delay and watchdog timer. Monitors four voltages with a threshold accuracy of 400mV, operating from 1.8V to 6.5V. Offers a 1mA maximum output current and a low quiescent current of 12uA. Packaged in a 20-QFN (4.15mm x 4.15mm x 0.95mm) for surface mounting, with a temperature range of -40°C to 125°C. Includes active-low reset and a totem-pole output.
PackageQFN
Current13uA
MountingSurface Mount
Power2.86W
Quick Jump:
Technical Specifications
Texas Instruments TPS386040RGPT technical specifications.
General
Accuracy
0.25%
Package/Case
QFN
Height
0.95mm
Lead Free
Lead Free
Length
4.15mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1mA
Max Power Dissipation
2.86W
Max Reset Threshold Voltage
404mV
Min Reset Threshold Voltage
396mV
Max Supply Voltage
6.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Voltages Monitored
4
Operating Supply Current
11uA
Output
TOTEM-POLE
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
2.86W
Quiescent Current
12uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reset
Active Low
RoHS Compliant
Yes
Supply Current
13uA
Termination
SMD/SMT
Threshold Voltage
400mV
Type
Multi-Voltage Supervisor, Power Supply Monitor
Watchdog Timer
Yes
Width
4.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS386040RGPT Datasheet
Download the complete datasheet for Texas Instruments TPS386040RGPT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

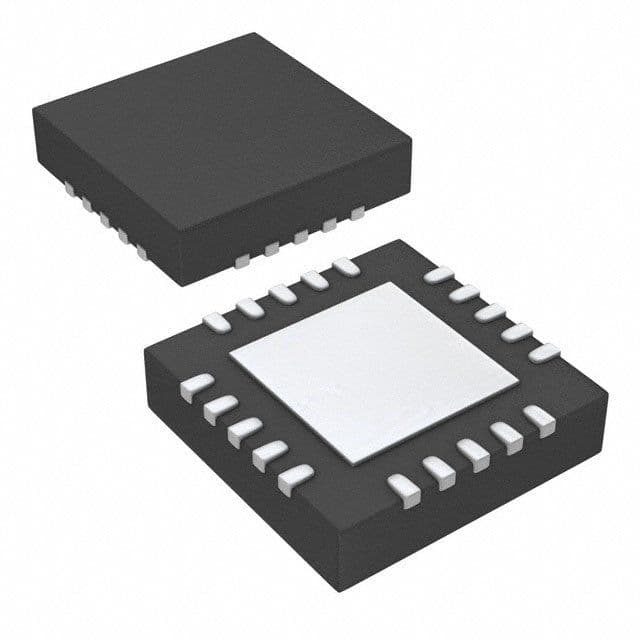

Product Images
