Texas Instruments
TPS40040DRBT
2.25 to 5.5 V input, 300 kHz, synchronous buck controller with low pin count 8-SON -40 to 85
Frequency350kHz
PackageVSON
Quick Jump:
Technical Specifications
Texas Instruments TPS40040DRBT technical specifications.
General
Package/Case
VSON
Duty Cycle
95%
Lead Free
Contains Lead
Max Frequency
350kHz
Max Input Voltage
5.5V
Min Input Voltage
2.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
15A
Max Output Voltage
4.95V
Min Output Voltage
600mV
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Current
15A
Output Voltage
4.95V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.000847oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40040DRBT Datasheet
Download the complete datasheet for Texas Instruments TPS40040DRBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

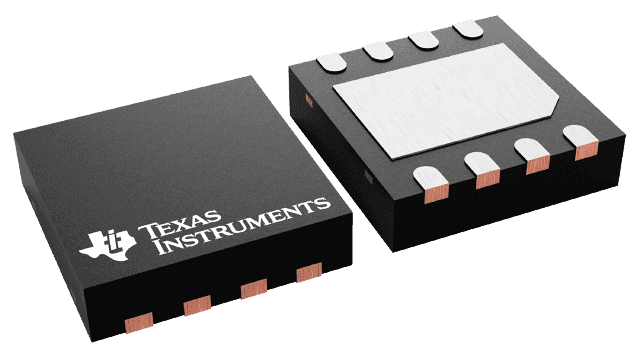

Product Images
