Synchronous buck controller with wide 8V to 40V input voltage range, operating up to 1MHz. Features a 94% maximum duty cycle and a single positive output up to 40V. This surface mountable HTSSOP package offers clock synchronization and is RoHS compliant, suitable for operation between -40°C and 85°C.
Frequency1MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS40054PWPG4 technical specifications.
General
Package/Case
HTSSOP
Clock Sync
Yes
Duty Cycle
94%
Height
1.15mm
Input Current
5mA
Lead Free
Lead Free
Length
5mm
Max Duty Cycle
94%
Max Frequency
1MHz
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
6V
Max Supply Voltage
40V
Min Supply Voltage
8V
Mount
Surface Mount
Number of Output Phases
1
Number of Outputs
1
Output Configuration
Positive
Output Voltage
40V
Package Quantity
90
Packaging
Rail/Tube
Quiescent Current
1.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Weight
0.002212oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40054PWPG4 Datasheet
Download the complete datasheet for Texas Instruments TPS40054PWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

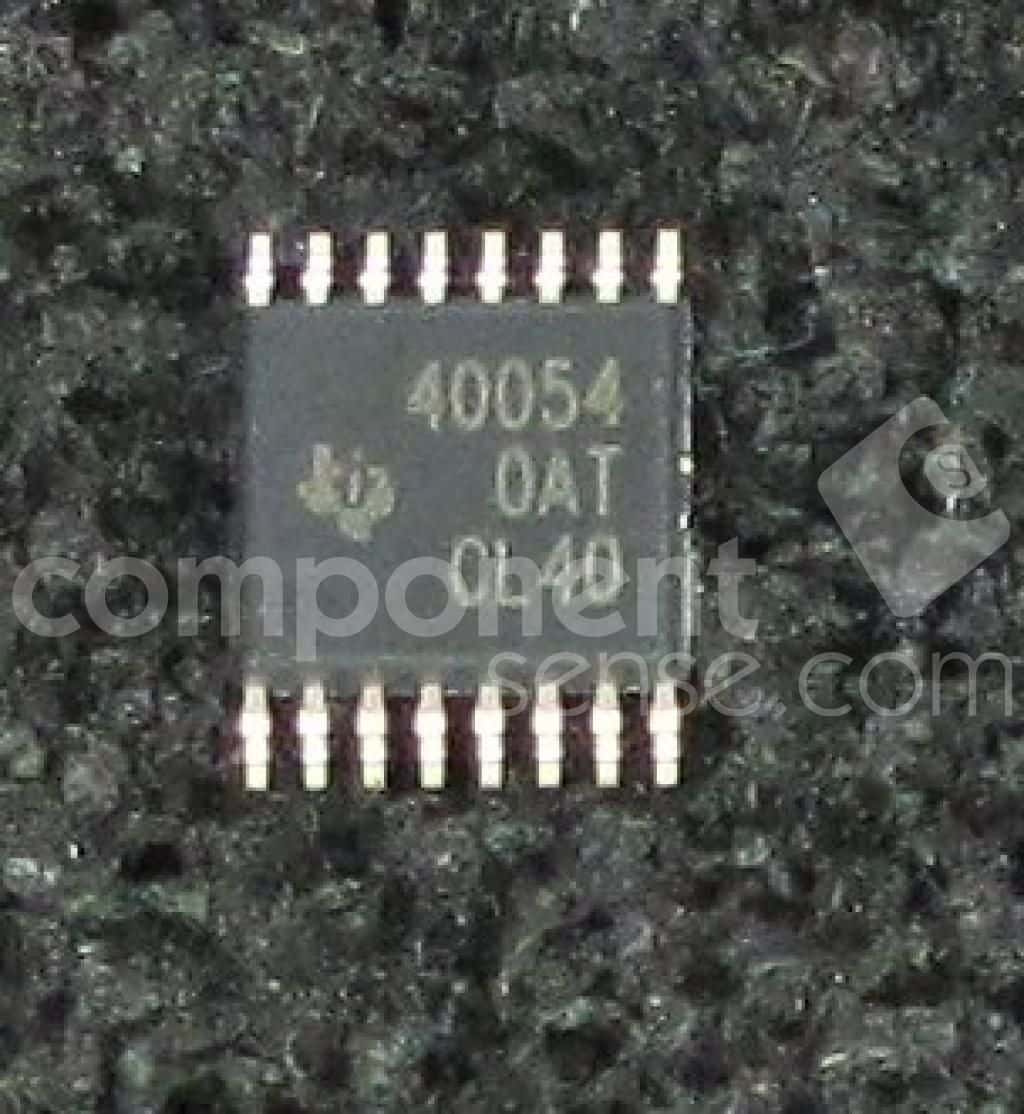

Product Images
