Texas Instruments
TPS40074RHLT
Midrange Input Synchronous Buck Controller With Voltage Feed-Forward 20-VQFN -40 to 85
Frequency1MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS40074RHLT technical specifications.
General
Package/Case
VQFN
Duty Cycle
95%
Lead Free
Lead Free
Max Frequency
1MHz
Max Input Voltage
28V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Max Output Voltage
23V
Min Output Voltage
700mV
Number of Outputs
1
Operating Supply Voltage
28V
Output Current
20A
Output Voltage
23V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
1.5mA
RoHS Compliant
Yes
Series
TPS40074
Weight
0.001668oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40074RHLT Datasheet
Download the complete datasheet for Texas Instruments TPS40074RHLT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

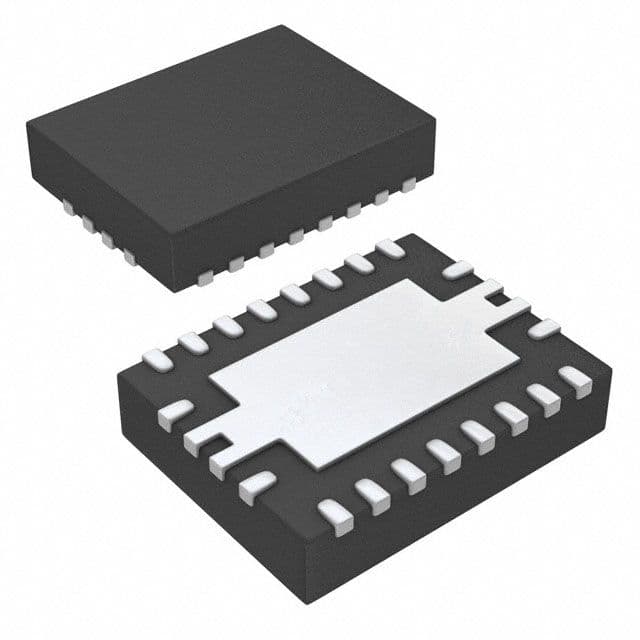

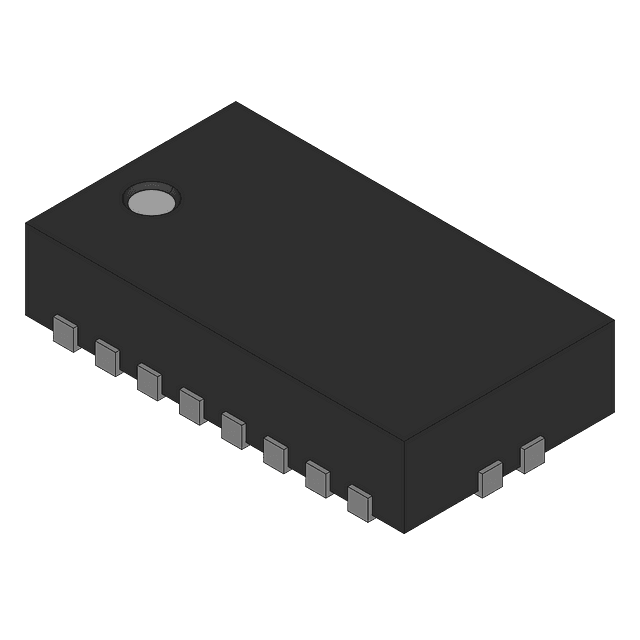

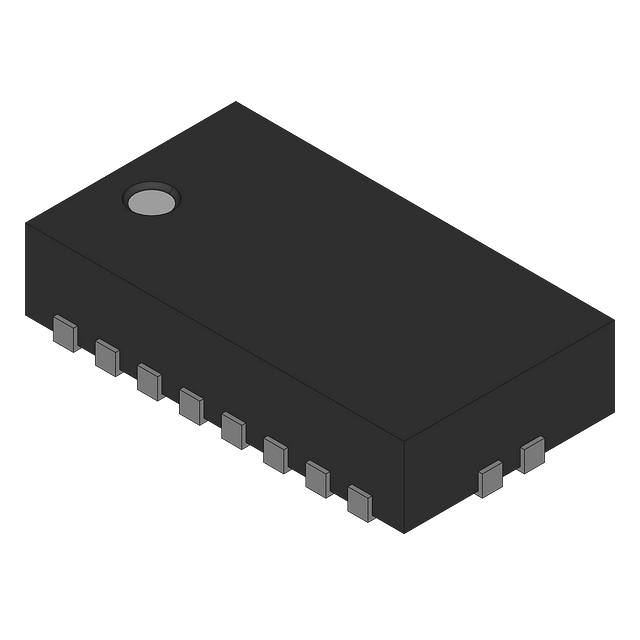

Product Images
