Texas Instruments
TPS40075RHLTG4
Wide Input Synchronous Buck Controller with Voltage Feed Forward 20-VQFN -40 to 85
Frequency1MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS40075RHLTG4 technical specifications.
General
Package/Case
VQFN
Duty Cycle
95%
Height
0.9mm
Lead Free
Contains Lead
Length
4.5mm
Max Frequency
1MHz
Max Input Voltage
28V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Max Output Voltage
23V
Min Output Voltage
700mV
Number of Outputs
1
Operating Supply Voltage
28V
Output Current
20A
Output Voltage
23V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
1.5mA
RoHS Compliant
Yes
Weight
0.001668oz
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40075RHLTG4 Datasheet
Download the complete datasheet for Texas Instruments TPS40075RHLTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

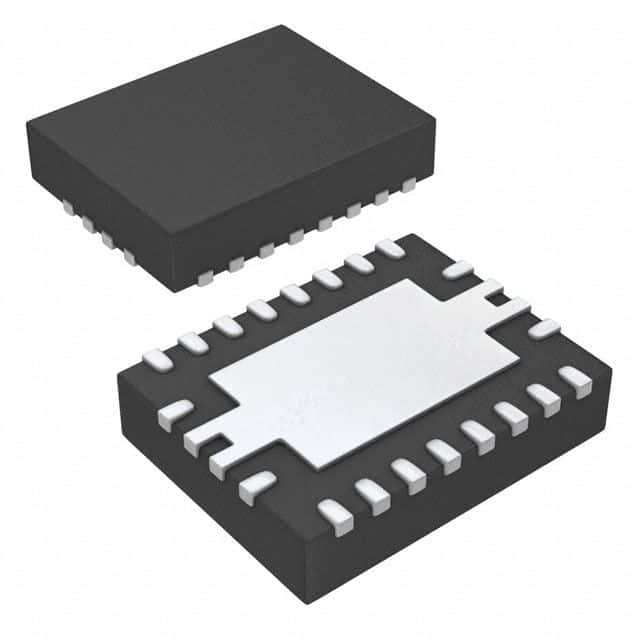

Product Images
