Texas Instruments
TPS40091RHDR
4 Channel Multiphase Buck DC/DC Controller with Tri-state 28-VQFN -40 to 85
Frequency1MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS40091RHDR technical specifications.
General
Package/Case
VQFN
Duty Cycle
87.5%
Lead Free
Lead Free
Max Frequency
1MHz
Max Input Voltage
15V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120A
Max Output Voltage
3.3V
Min Output Voltage
700mV
Number of Outputs
1
Output Current
120A
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
4mA
RoHS Compliant
Yes
Weight
0.002526oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40091RHDR Datasheet
Download the complete datasheet for Texas Instruments TPS40091RHDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

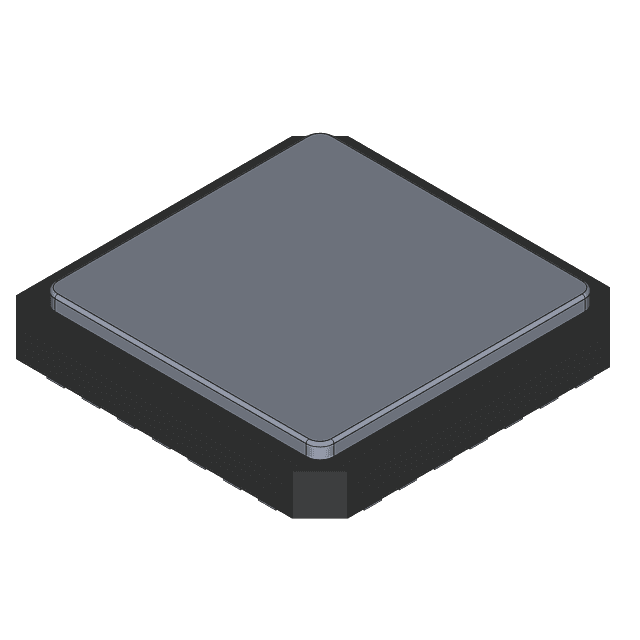

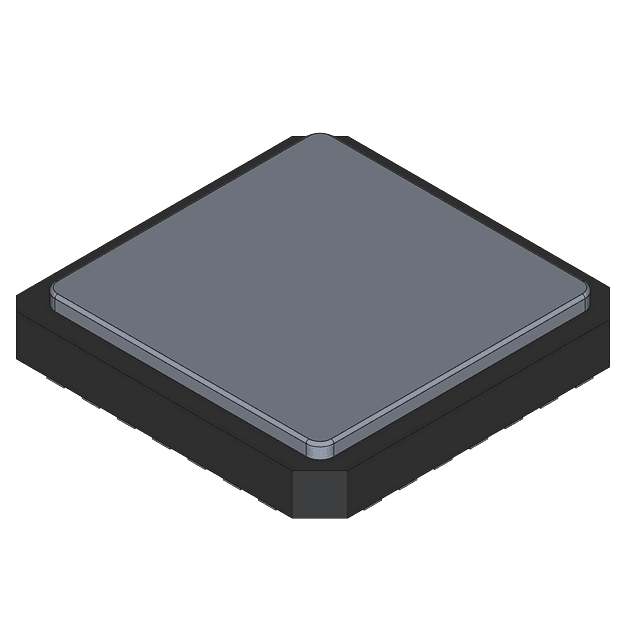

Product Images
