Texas Instruments
TPS40140RHHT
Stackable 2 Channel Multiphase or 2 Channel Independent Output Controller 36-VQFN -40 to 85
Frequency1MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS40140RHHT technical specifications.
General
Package/Case
VQFN
Duty Cycle
87.5%
Lead Free
Lead Free
Max Frequency
1MHz
Max Input Voltage
40V
Min Input Voltage
2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
25A
Max Output Voltage
5.8V
Min Output Voltage
700mV
Max Supply Voltage
15V
Min Supply Voltage
4.5V
Number of Outputs
2
Output Current
25A
Output Voltage
5.8V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
2.8mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.003728oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40140RHHT Datasheet
Download the complete datasheet for Texas Instruments TPS40140RHHT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

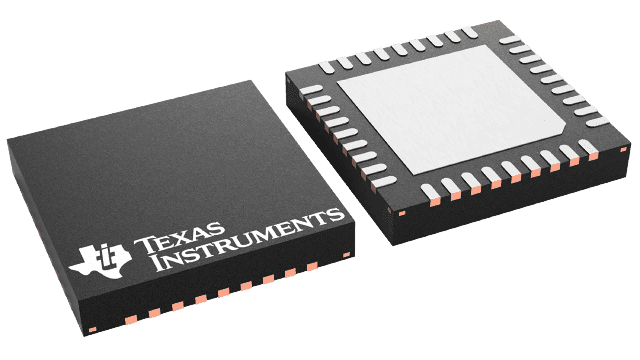

Product Images
