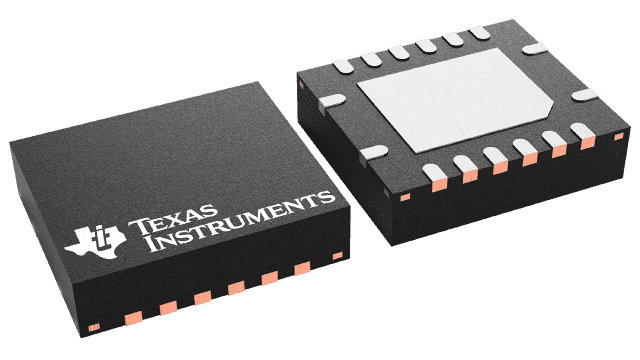

Synchronous buck controller for efficient power conversion. Features a 4.5V to 14V input voltage range and supports up to 6A output current. Operates with a switching frequency up to 600kHz and offers a 4-bit VID interface for voltage control. Packaged in a VQFN for surface mount applications, this component is RoHS compliant and operates across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS40197RGYT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | VQFN |
| Duty Cycle | 85% |
| Frequency | 520kHz |
| Lead Free | Lead Free |
| Max Frequency | 600kHz |
| Max Input Voltage | 14V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6A |
| Max Output Voltage | 1.2V |
| Min Output Voltage | 900mV |
| Max Supply Voltage | 14V |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 1 |
| Output Current | 6A |
| Output Voltage | 1.2V |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Weight | 0.001312oz |
| RoHS | Compliant |
