Single-output DC/DC controller for step-up applications, featuring a 4.5V to 52V input voltage range and a maximum output voltage of 260V. This surface-mount component operates at 1000kHz with a 95% maximum duty cycle and supports Boost, Flyback, and SEPIC topologies. It offers a positive output configuration with a 400mA output current and a single output phase. The device is housed in a 10-pin HVSSOP package, is RoHS compliant, and operates across a temperature range of -40°C to 125°C.
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS40210DGQ technical specifications.
General
Package/Case
MSOP
Clock Sync
Yes
Duty Cycle
95%
Height
1.02mm
Lead Free
Lead Free
Length
3mm
Max Duty Cycle
95%
Max Input Voltage
52V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Voltage
9V
Max Supply Voltage
52V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Output Phases
1
Number of Outputs
1
Output Configuration
Positive
Output Current
400mA
Output Voltage
260V
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Boost, Flyback, SEPIC
Weight
0.000829oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS40210DGQ Datasheet
Download the complete datasheet for Texas Instruments TPS40210DGQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

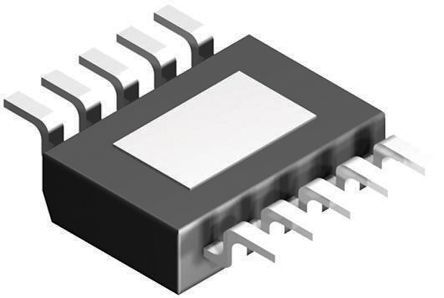

Product Images
