The TPS40425RHAR is a dual output DC/DC controller from Texas Instruments. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device features a VQFN-40 package and is available in tape and reel packaging. It has a quiescent current of 18mA and is designed for use in synchronous rectifier applications. The TPS40425RHAR is a lead free device and is suitable for surface mount applications.
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS40425RHAR technical specifications.
General
| Package/Case | VQFN |
| Clock Sync | Yes |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Output Phases | 2 |
| Number of Outputs | 2 |
| Operating Supply Voltage | 20V |
| Output Configuration | Positive |
| Packaging | Tape and Reel |
| Quiescent Current | 18mA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS40425RHAR Datasheet
Download the complete datasheet for Texas Instruments TPS40425RHAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

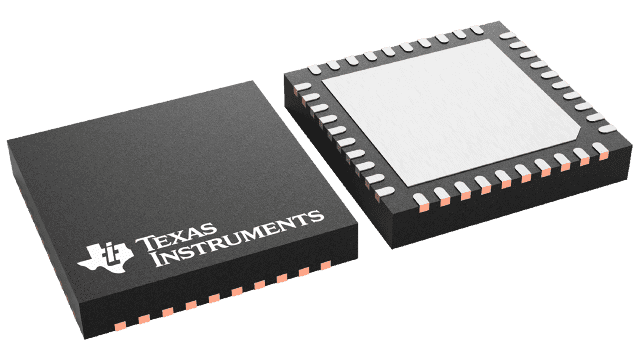

Product Images
