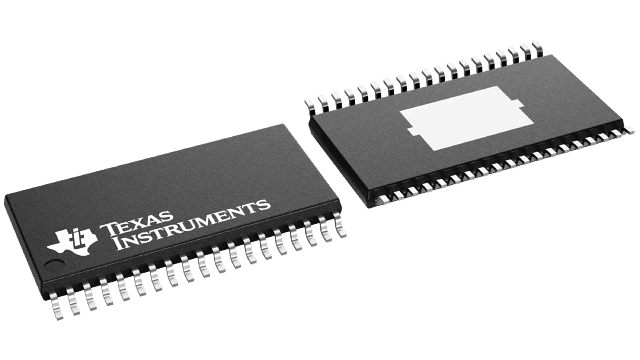

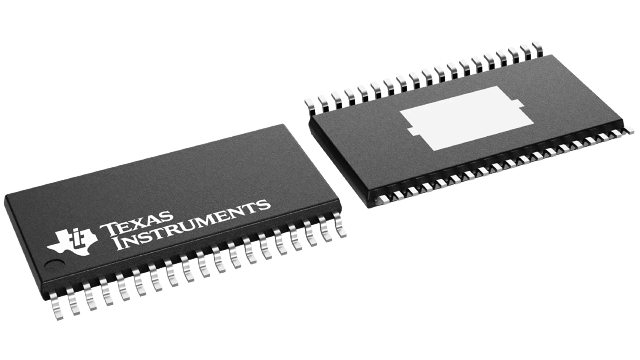

The TPS43332QDAPRQ1 is a 3-output DC/DC controller from Texas Instruments with a 5V output voltage and 3A output current. It operates over a temperature range of -40°C to 125°C and is packaged in a surface mount HTSSOP package. The device is compliant with AEC-Q100 and RoHS standards. It features a quiescent current of 30uA and a maximum frequency of 600kHz. The TPS43332QDAPRQ1 is designed for use in automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS43332QDAPRQ1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | HTSSOP |
| Duty Cycle | 98.75% |
| Height | 1.15mm |
| Lead Free | Lead Free |
| Max Duty Cycle | 100% |
| Max Frequency | 600kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 3 |
| Output Current | 3A |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 30uA |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| RoHS | Compliant |
