Synchronous buck controller for efficient power conversion, operating from a 4.5V to 13.2V input range. Features a high-current gate driver, 300kHz switching frequency, and 1% accuracy. Supports adjustable output voltages from -3V to 35V with a maximum output current of 10A. Packaged in a 10-VSON for surface-mount applications, this component offers a wide operating temperature range of -40°C to 85°C.
Frequency300kHz
PackageSON
PolarityPositive
Power2.61W
Quick Jump:
Technical Specifications
Texas Instruments TPS51113DRCT technical specifications.
General
Accuracy
1%
Package/Case
SON
Duty Cycle
72%
Frequency
300kHz
Lead Free
Contains Lead
Max Frequency
330kHz
Max Input Voltage
13.2V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
35V
Min Output Voltage
-3V
Max Supply Voltage
13.2V
Min Supply Voltage
4.5V
Number of Channels
1
Number of Outputs
1
Output Current
1.5A
Output Power
2.61W
Output Type
Fixed, Adjustable
Output Voltage
28V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Weight
0.000921oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS51113DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS51113DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

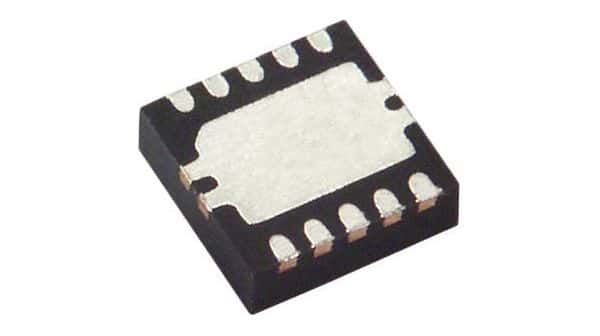

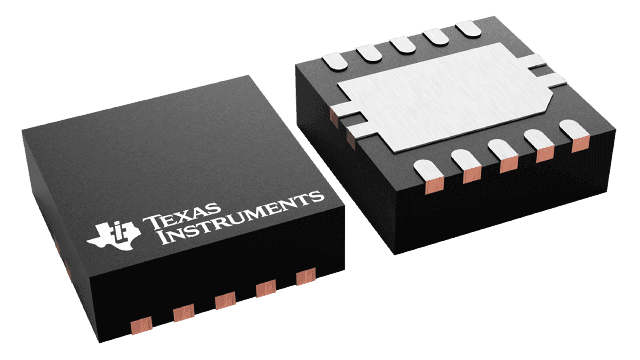

Product Images
