Synchronous buck controller for efficient power conversion. Features a 4.5V to 13.2V input voltage range and a 600kHz switching frequency, with a maximum of 660kHz. Delivers up to 10A maximum output current and an adjustable output voltage from 1.6V. Operates across a wide temperature range of -40°C to 85°C. Packaged in a SON (Small Outline No-lead) surface-mount device (SMD/SMT) format on tape and reel.
Frequency600kHz
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments TPS51163DRCT technical specifications.
General
Package/Case
SON
Duty Cycle
69%
Frequency
600kHz
Lead Free
Contains Lead
Max Frequency
660kHz
Max Input Voltage
13.2V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
28V
Max Supply Voltage
13.2V
Min Supply Voltage
4.5V
Number of Outputs
1
Output Current
1.5A
Output Type
Adjustable
Output Voltage
1.6V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TPS51163
Termination
SMD/SMT
Weight
0.000921oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS51163DRCT Datasheet
Download the complete datasheet for Texas Instruments TPS51163DRCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

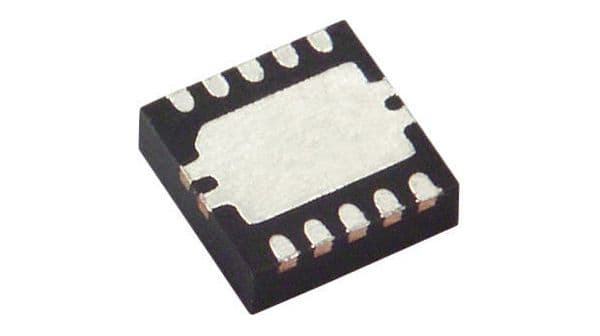

Product Images
