Texas Instruments

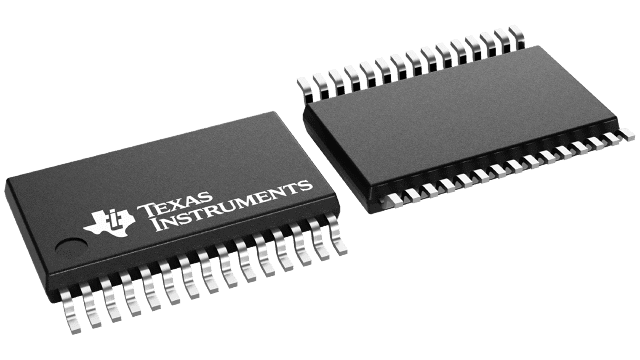

TPS5120MDBTREP
Enhanced Product Dual Output Two-Phase Synchronous Buck Dc/Dc Controller 30-TSSOP -55 to 125
Frequency500kHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments TPS5120MDBTREP technical specifications.
General
Package/Case
TSSOP
Dropout Voltage
200mV
Duty Cycle
100%
Lead Free
Lead Free
Max Frequency
500kHz
Max Input Voltage
28V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Number of Outputs
2
Operating Supply Voltage
28V
Output Current
1.5A
Output Voltage
900mV
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
1.1mA
RoHS Compliant
Yes
Weight
0.003439oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS5120MDBTREP Datasheet
Download the complete datasheet for Texas Instruments TPS5120MDBTREP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
