Texas Instruments
TPS51217DSCR
3-V to 28-V, 20-A, synchronous D-CAP buck controller for notebook power 10-WSON -40 to 85
Frequency368kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51217DSCR technical specifications.
General
| Duty Cycle | 89% |
| Lead Free | Lead Free |
| Max Frequency | 368kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 6.5V |
| Output Current | 20A |
| Output Voltage | 2.6V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 320uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | D-CAP™ |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments TPS51217DSCR Datasheet
Download the complete datasheet for Texas Instruments TPS51217DSCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

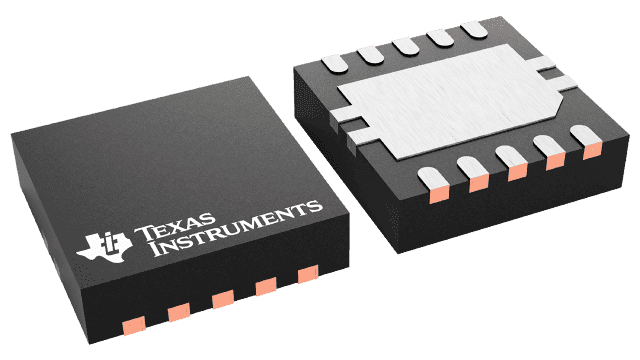

Product Images
