Single-output DC/DC controller and regulator for step-down applications. Features a 3V to 28V input voltage range and a 700mV to 2.6V output voltage range, supporting up to 20A output current. Operates at a 430kHz switching frequency with a maximum of 465kHz. Packaged in a 10-pin WSON EP with dimensions of 3.15mm x 3.15mm x 0.75mm, suitable for surface mounting. RoHS compliant with a 91% duty cycle and 320uA quiescent current.
Frequency430kHz
PackageSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments TPS51218DSCT technical specifications.
General
Package/Case
SON
Duty Cycle
91%
Frequency
430kHz
Height
0.75mm
Lead Free
Contains Lead
Length
3.15mm
Max Frequency
465kHz
Max Input Voltage
28V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Max Output Voltage
2.6V
Min Output Voltage
700mV
Max Supply Voltage
28V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
6.5V
Output Current
20A
Output Voltage
2.6V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
320uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
D-CAP™
Termination
SMD/SMT
Width
3.15mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS51218DSCT Datasheet
Download the complete datasheet for Texas Instruments TPS51218DSCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

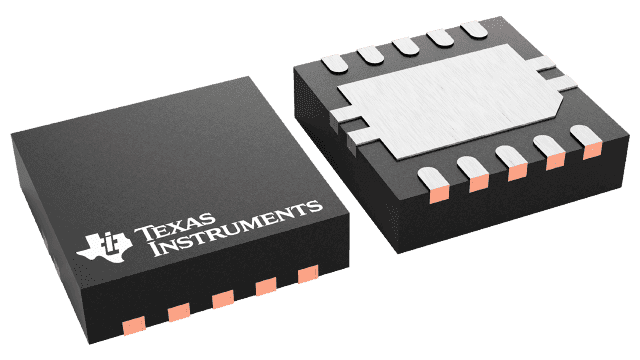

Product Images
