Texas Instruments
TPS51220RHBT
3-V to 28-V, synchronous peak current mode buck controller for notebook power 32-VQFN -40 to 85
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments TPS51220RHBT technical specifications.
General
Package/Case
VQFN
Lead Free
Lead Free
Max Input Voltage
28V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Max Output Voltage
12V
Min Output Voltage
1V
Number of Outputs
2
Operating Supply Voltage
28V
Output Current
20A
Output Voltage
12V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
1.3mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
D-CAP™
Weight
0.002533oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments TPS51220RHBT Datasheet
Download the complete datasheet for Texas Instruments TPS51220RHBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

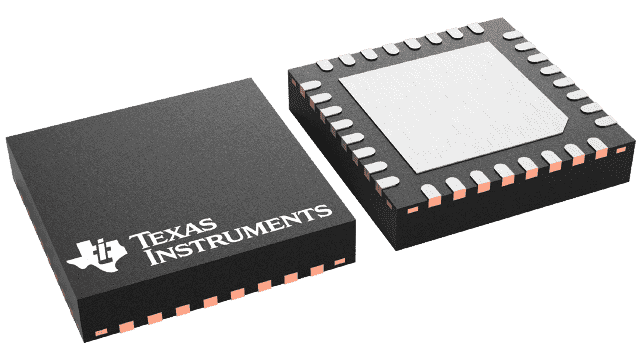

Product Images
