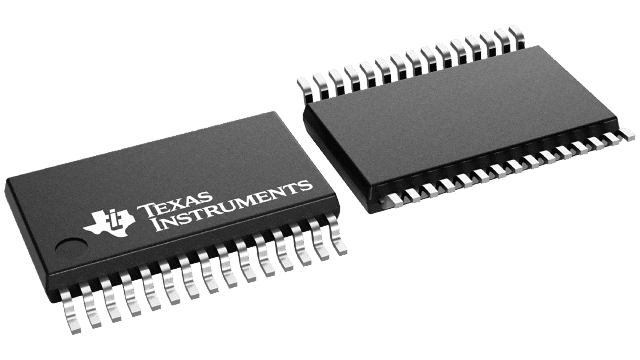

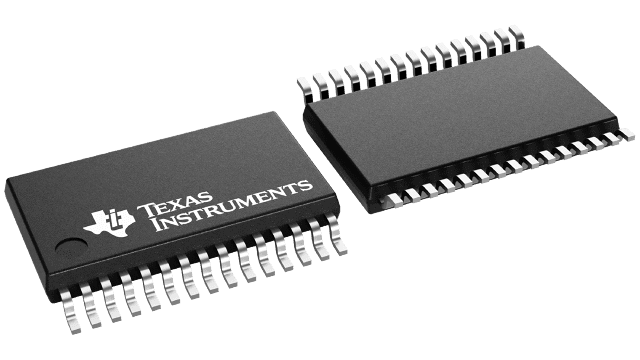

Dual channel synchronous step-down PWM controller featuring a 4.5V to 15V input voltage range and 4.5V to 5.5V supply voltage. Delivers up to 20A output current with adjustable output voltages from 900mV to 12V. Operates with a 300kHz switching frequency, extendable to 500kHz, and a maximum duty cycle of 80%. Packaged in a 30-TSSOP, this RoHS compliant component offers a quiescent current of 1.1mA and operates across a -40°C to 85°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPS5124DBT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Duty Cycle | 80% |
| Frequency | 300kHz |
| Input Current | 1.1mA |
| Lead Free | Lead Free |
| Max Frequency | 500kHz |
| Max Input Voltage | 15V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20A |
| Max Output Voltage | 12V |
| Min Output Voltage | 900mV |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Number of Outputs | 2 |
| Output Current | 20A |
| Output Voltage | 12V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Power Dissipation | 874mW |
| Quiescent Current | 1.1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
